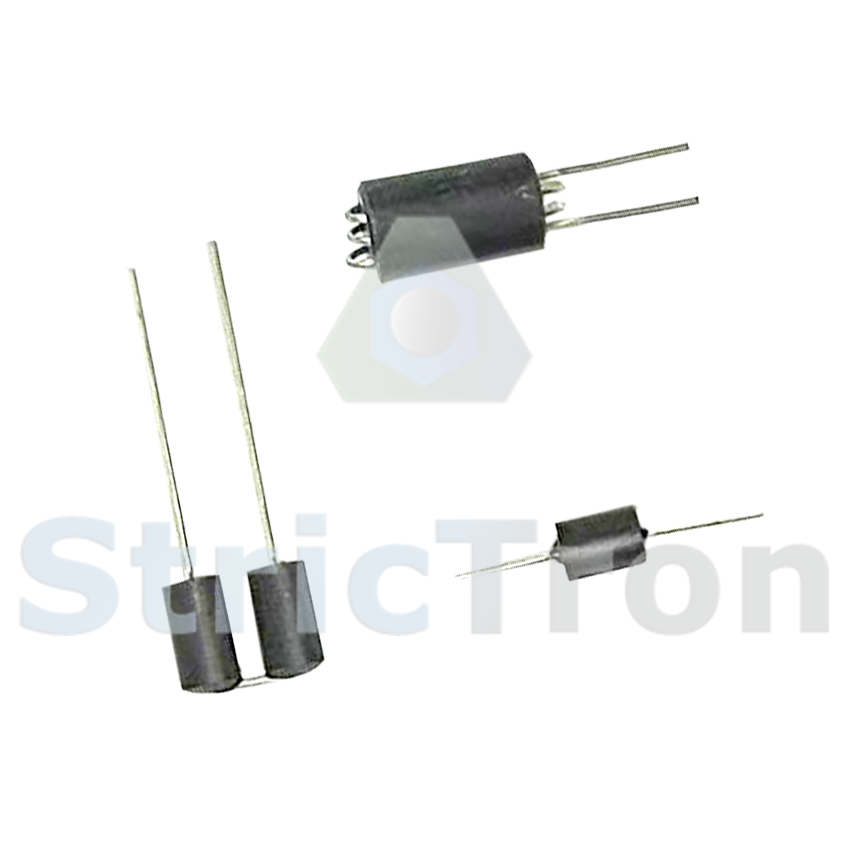

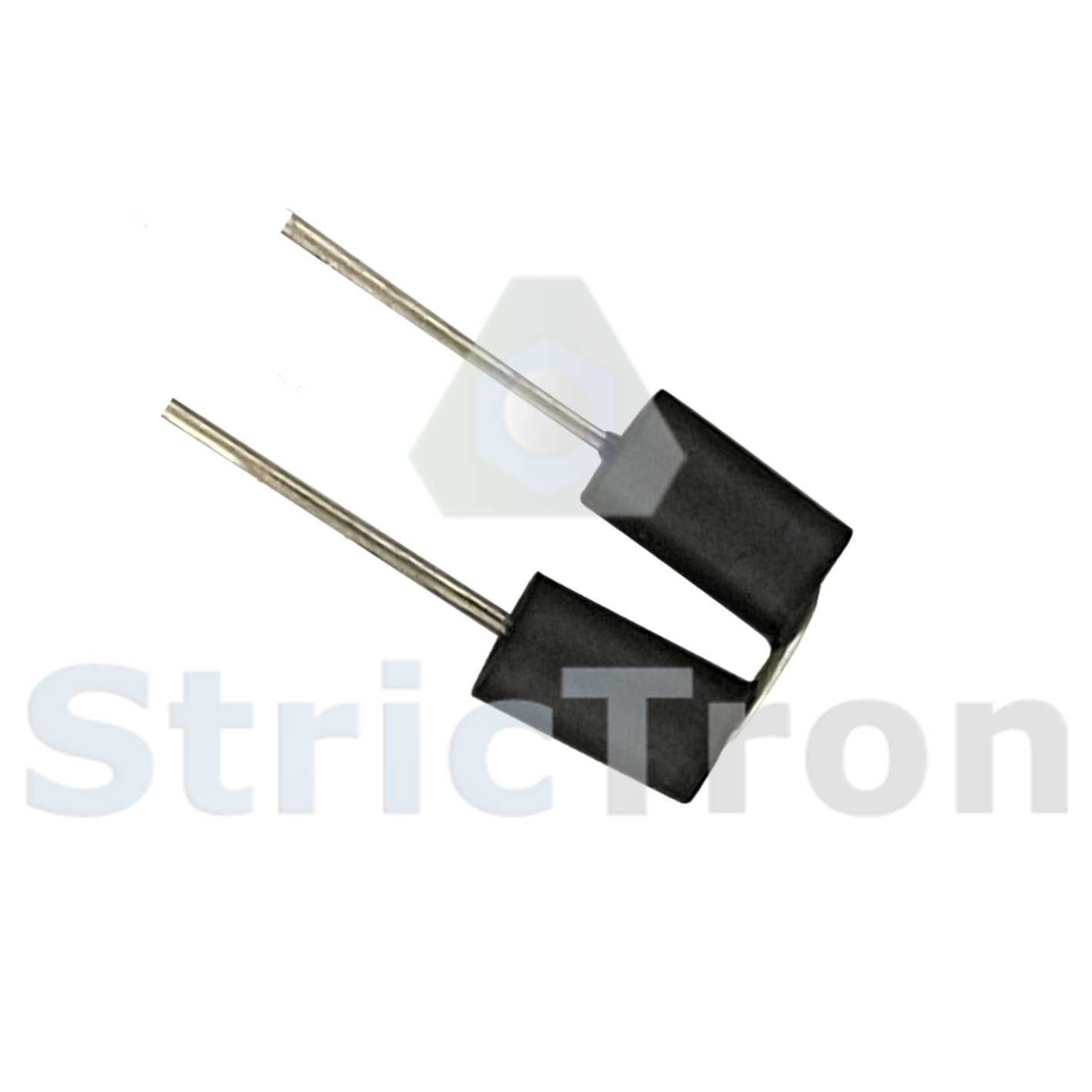

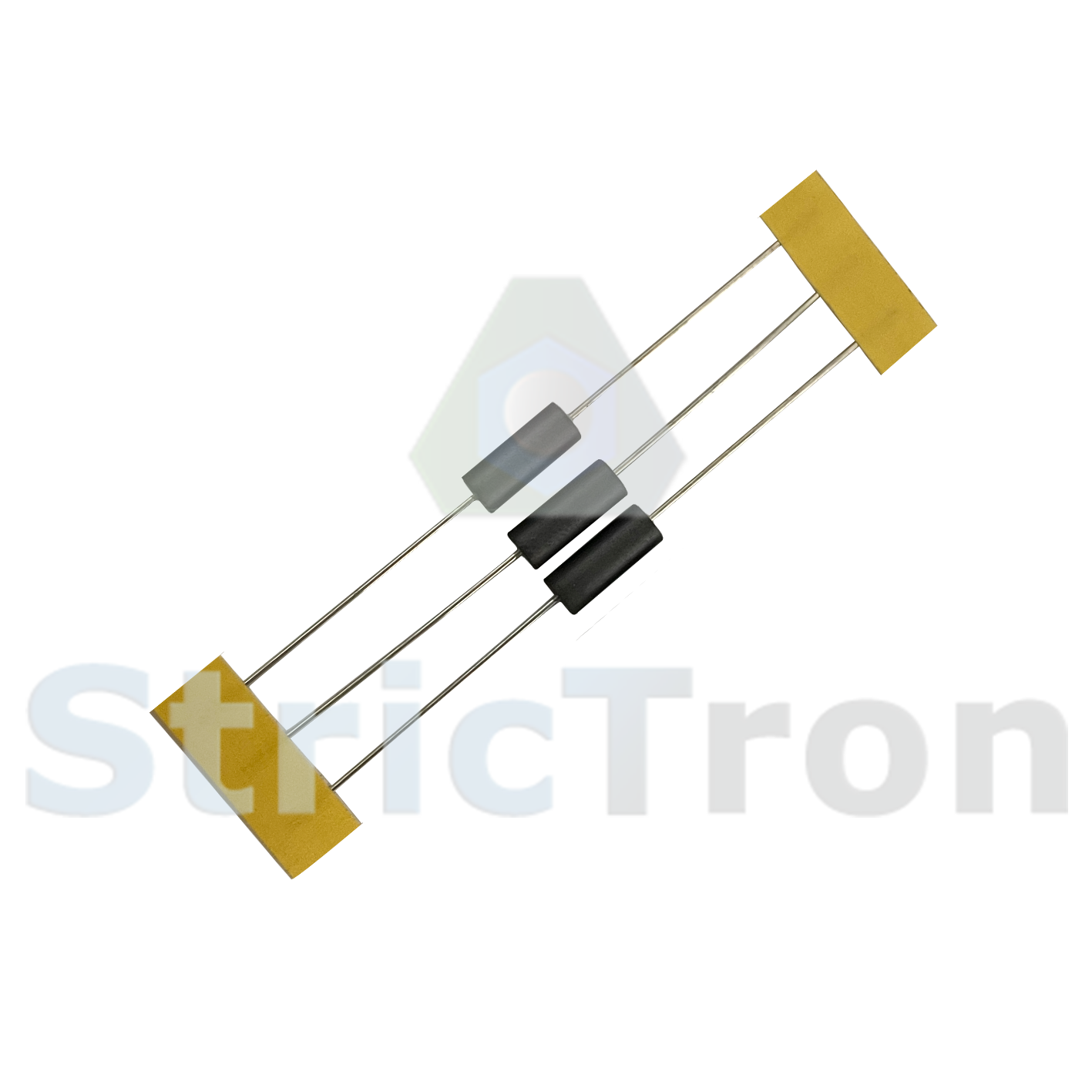

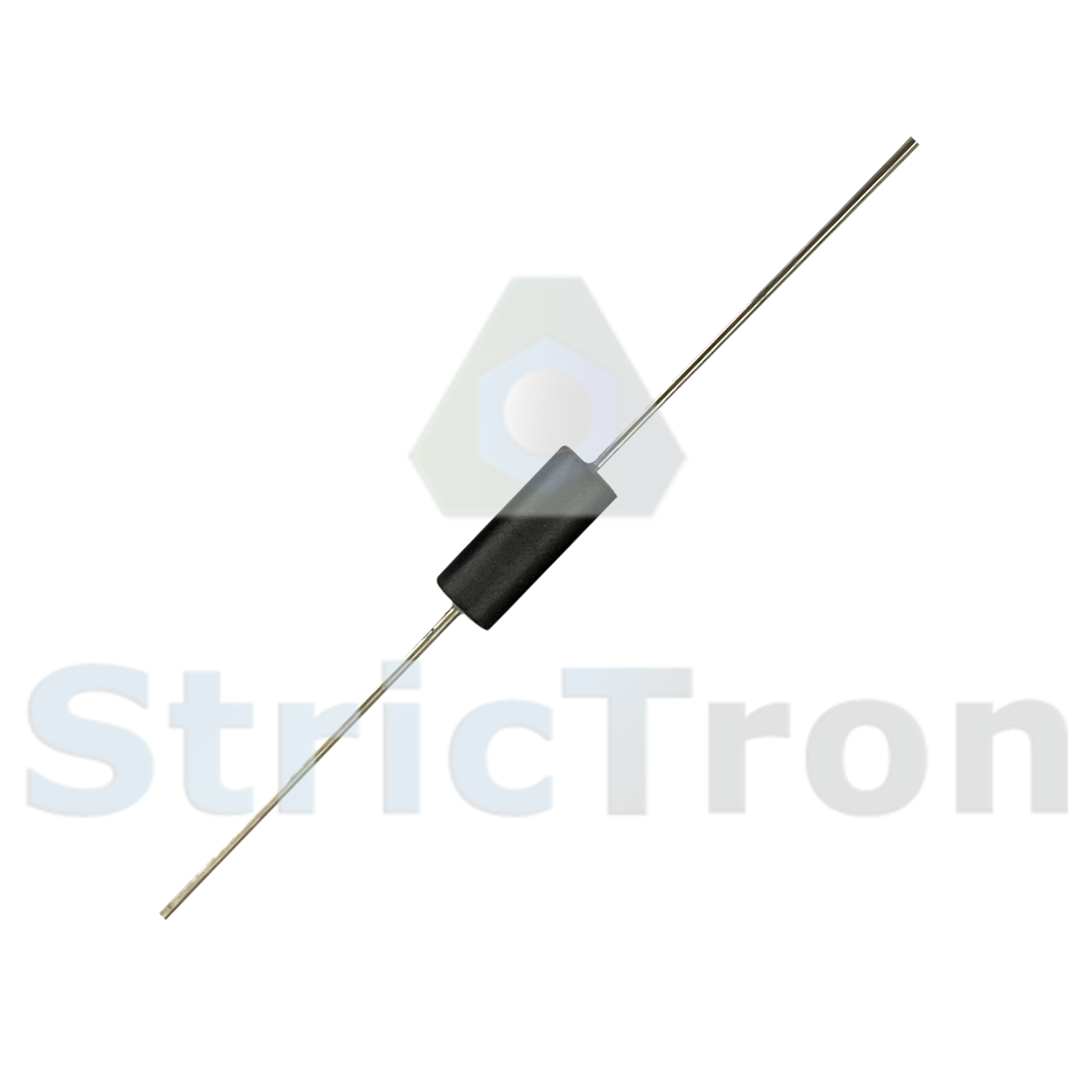

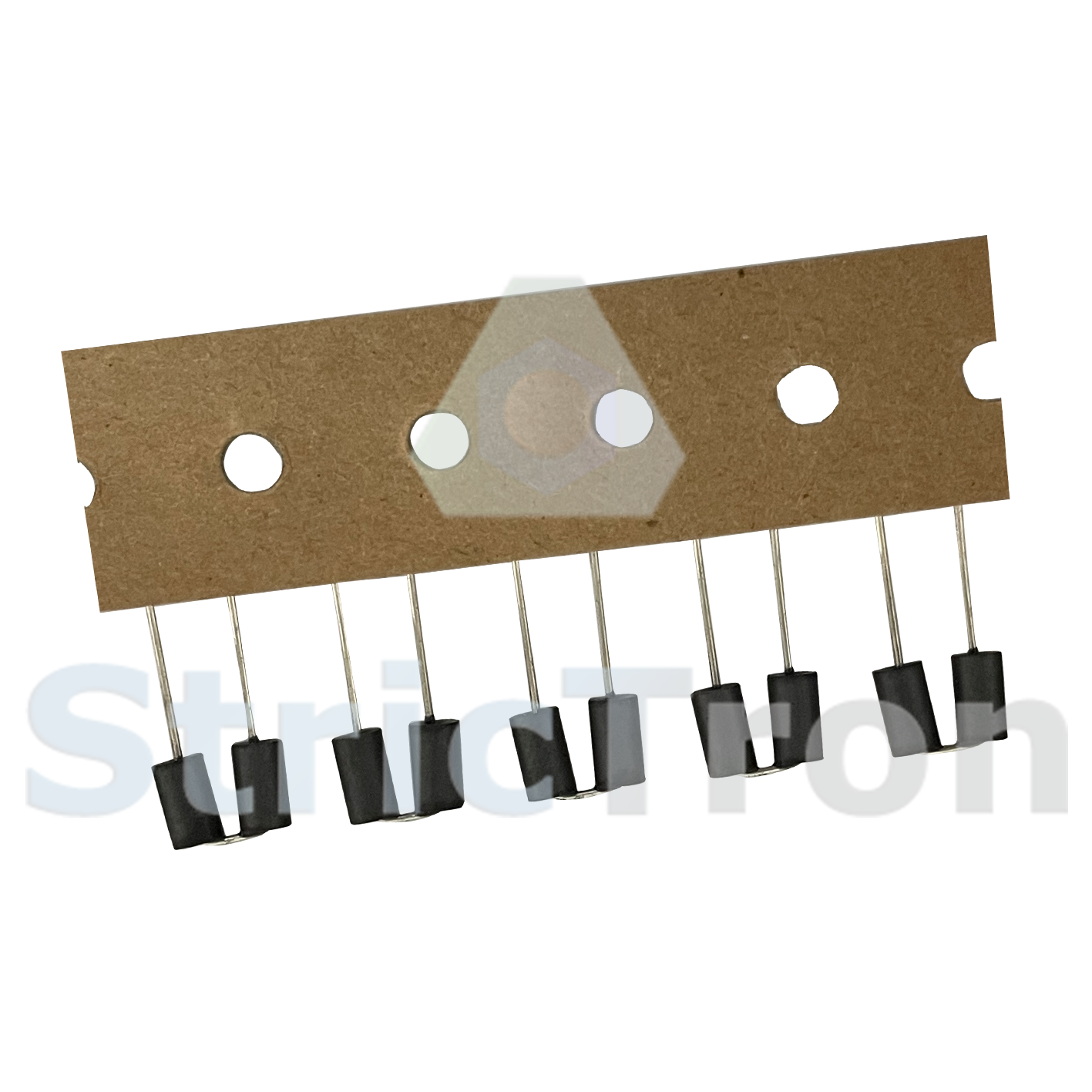

Plug-in type ferrite, designed with pins to apply to PCB.
Plug-in ferrite bead is designed with pins to be suitable for PCB circuits. It is specially used to suppress high-frequency noise and spike interference on signal lines and power lines, and also it has the ability to absorb electrostatic pulses. For example, some RF circuits, oscillation circuits and ultra-high frequency memory circuits (DDRSDRAM, RAMBUS, etc.) need to add ferrite beads to the power input part. This type of ferrite bead has high resistivity and permeability, it is equivalent to the series connection of resistance and inductance, but the resistance and inductance could change with frequency.
| Naming rules | Size range(common) | ||
| Eg: ANB 2PS-3.5*9*0.8 | Item | Range | |
| AN | Category | Bead height | 3mm ~ 14mm |
| B | Plug-in ferrite bead | ||
| 2PS | Type：double beads, vertical plugin | ||
| 3.5 | Bead outer diameter | ||
| 9 | Bead height | ||
| 0.8 | Inner diameter | ||
Click the button to open the catalog：
Product parameters in the catalog are for general choices. Should you not find proper parts, contact us for a further inquiry.
